el recuento de las uñas de la máquina de embalaje
- precio
- US $13000-23000
- modelo
- Fc-420
- MOQ
- 1 set
propiedad
- Tipo
- otro
- Condición
- Nuevo
- Uso
- Maquinaria y Hardware
- Tipo de empaquetado
- Paquete
- Material de empaquetado
- Metal
- Grado automático
- Automático
- Tipo conducido
- Neumático
- Voltaje
- 380v 220v 440v
- Energía
- 2.0kw
- Peso
- 500 kilogramos
- Dimensión (L*W*H)
- mm 2250x850x1950
- Certificación
- ce
- Servicio After-sales proporcionado
- Dirige disponible para mantener la maquinaria en ultramar
- material de embalaje
- Pe, del opp, del opp/pe, de al/pe, del opp/cp
- el recuento de las uñas de la máquina de embalaje de color
- dependen de los clientes
- el recuento de las uñas de la máquina de embalaje de garantía
- de un año
- el recuento de las uñas de la máquina de embalaje de embalaje
- la exportación de madera caso
- el recuento de las uñas de la máquina de embalaje de tipo
- uñas de la máquina de embalaje
- Paquete
- el recuento de las uñas de la máquina de embalaje de la exportación de madera caso
Evaluacion
Descripción
nails counting packing machine
1. Customized vibratory disks aiming to screws/heterotypic parts, precision counting control device, ensuring every bag correct.
2. Full automatic packaging machine adopts mechanical cam structure, enabling the whole machine safer, more stable and reliable.
3. Advanced PLC control system, automatic stop during failure, automatic alarming, automatic diagnosis, safe and simple for use.
4. Automatic feeding, counting, heating, packaging, variable packaging speed, failure display, etc.
5. Unique packaging and sealing technologies make the seal beautiful and firm.
Processing:
- Put raw material (nails) into hopper
- Use magnatic elevating device to transportation nails
- Weighing nails to 90%-95%,after that machine will calculate the deficiency raw material(nails)
- Use vibrating tray reactor and nail counter device will complement the deficiency raw material(nails)
- Packing raw material into bag ,and then finished (sealing and cutting)bag completed.
Parameters:
Filling capacity range | Each bag 1-4000pcs nails(depend on the bag size) |
Packing material | OPP/CPP,OPP/CE,PET/PE etc |
Bag size | (L)50-300mm,(W)50-200mm |
Max. film for bag | 420mm |
Output capacity | 15-30bag/min |
Voltage | AC 220V,60HZ three phases |
Total power | 2.0KW |
Machine size | 2250x850x1950 mm |
Total weight:500Kg | |

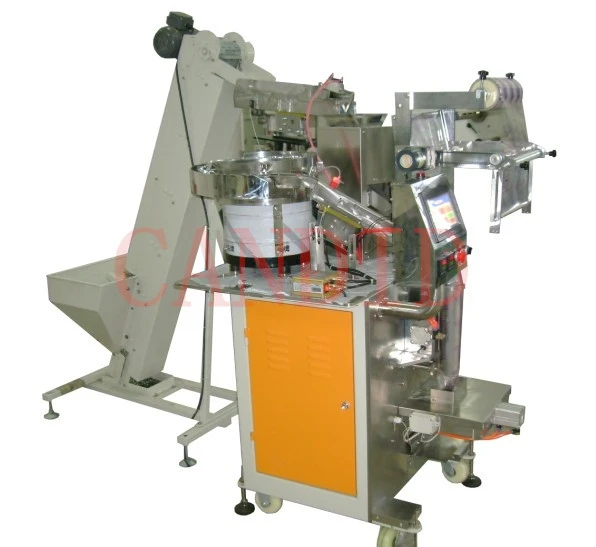

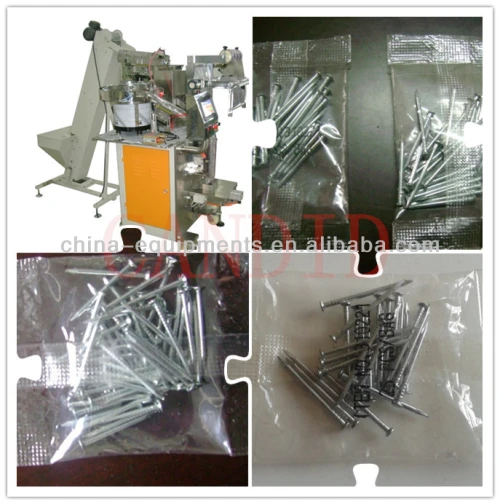

Machine Picture:

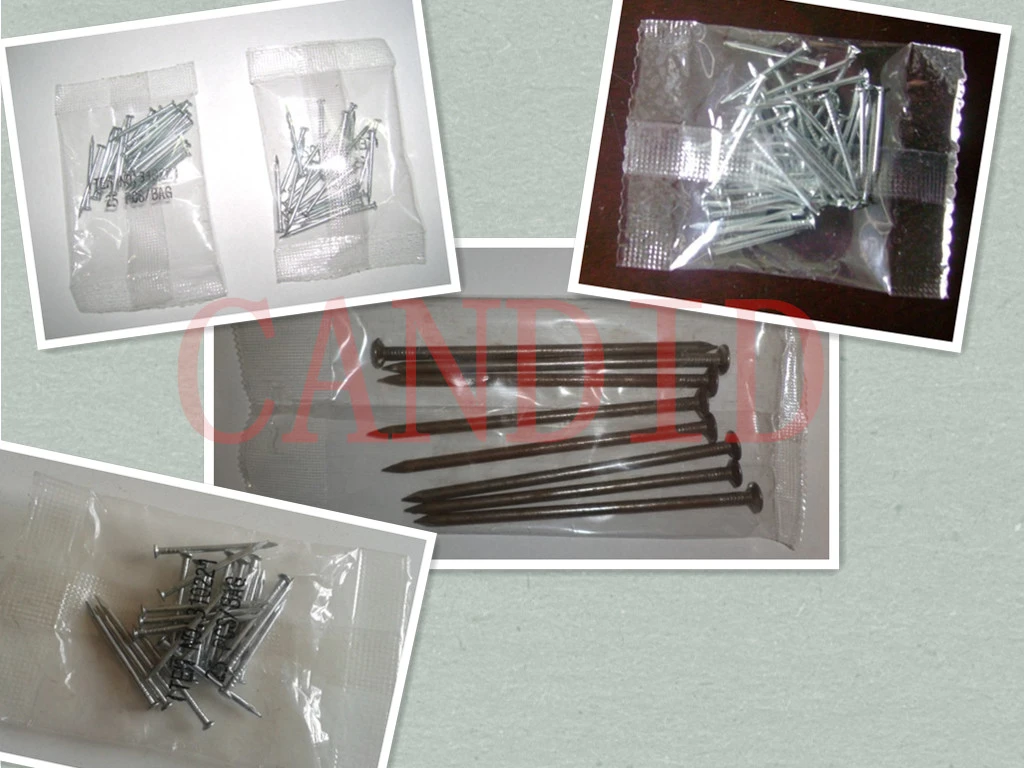

Finished Products:
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
Custom-made machine:
We have Great customized and design ability. Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost, making your packaging system works smoothly.
Installation
1.we provide videos and instruction manual to show the process of installation.
2.we provide training for installation for free in our factory.
3.we can send technician to buyer's factory to install the machine and provide training service.The detail terms pls refer our quotation
After Sales Service
1.One year warranty and free lifetime technique support.
2.Free spare parts would be supplied if machine broken within warranty period.
3.After the warranty period, the spare parts for replacement are offered based on certain charge.
